Factory Code: QH330A

Single phase motor with Australian 3-pin wall plug

1.5kW Direct Drive

Amperage: 6.25

201 stainless steel

Carbon steel wheels that are nickel-plated

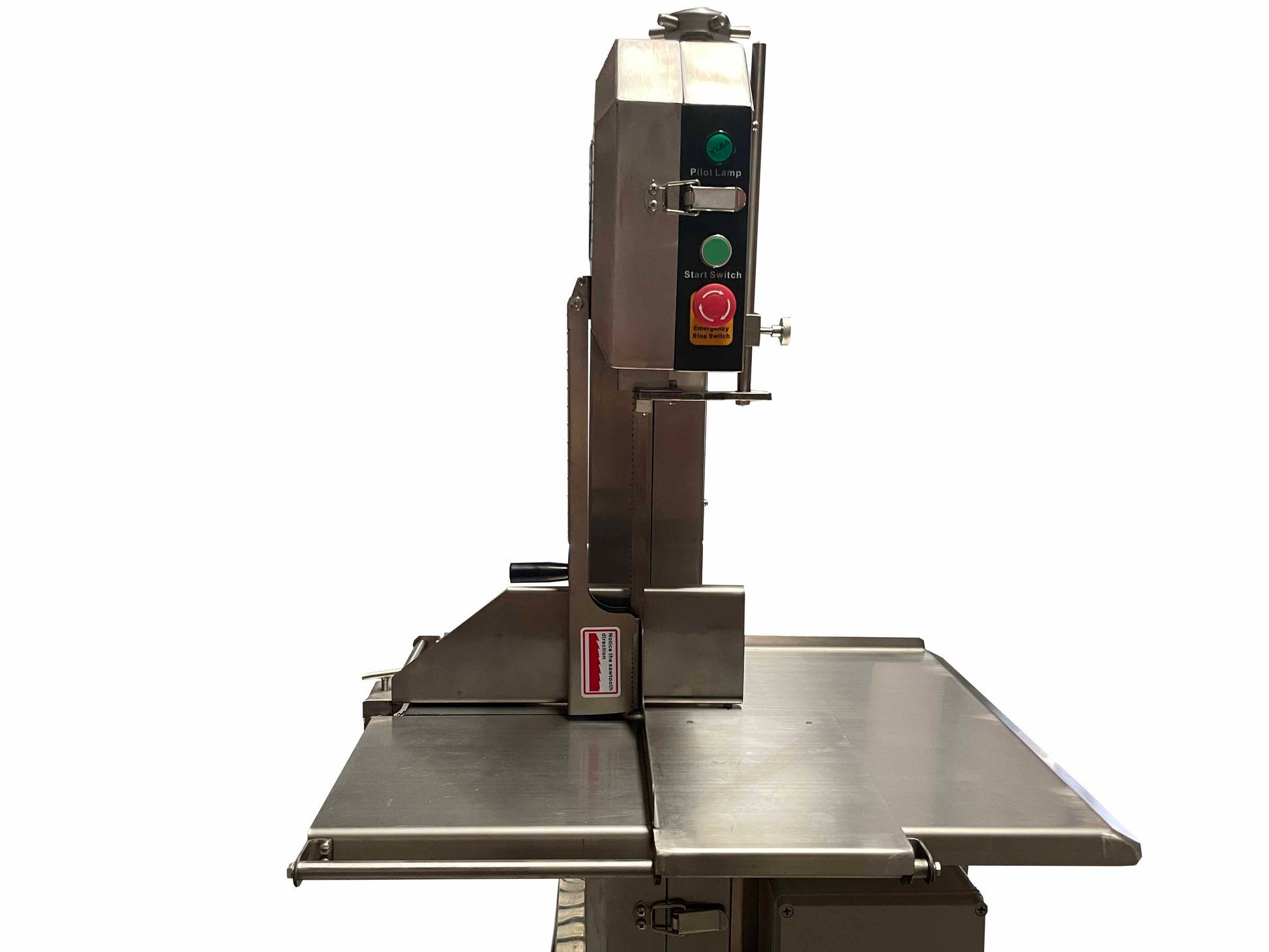

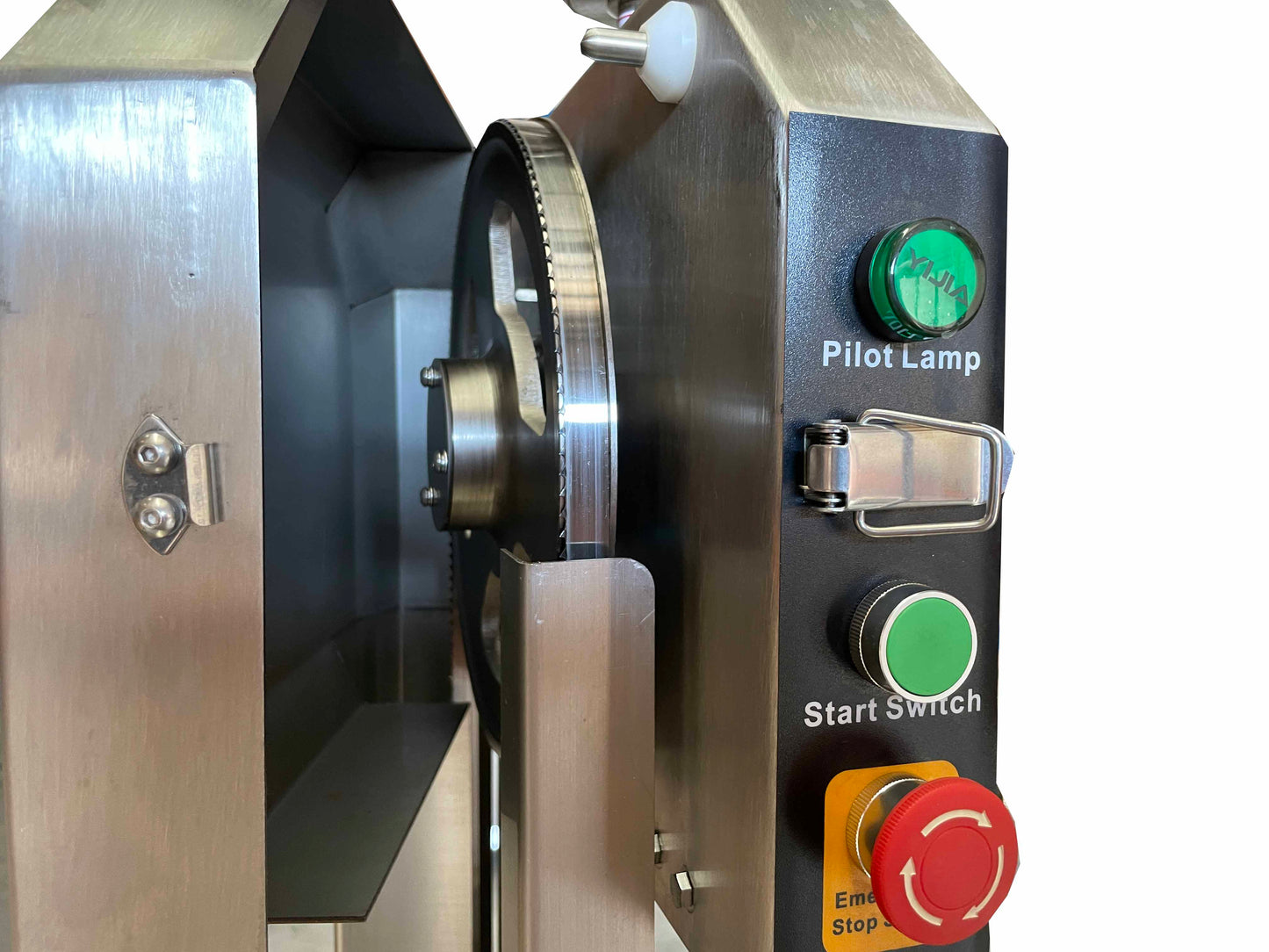

EMERGENCY HAND AND FOOT STOP

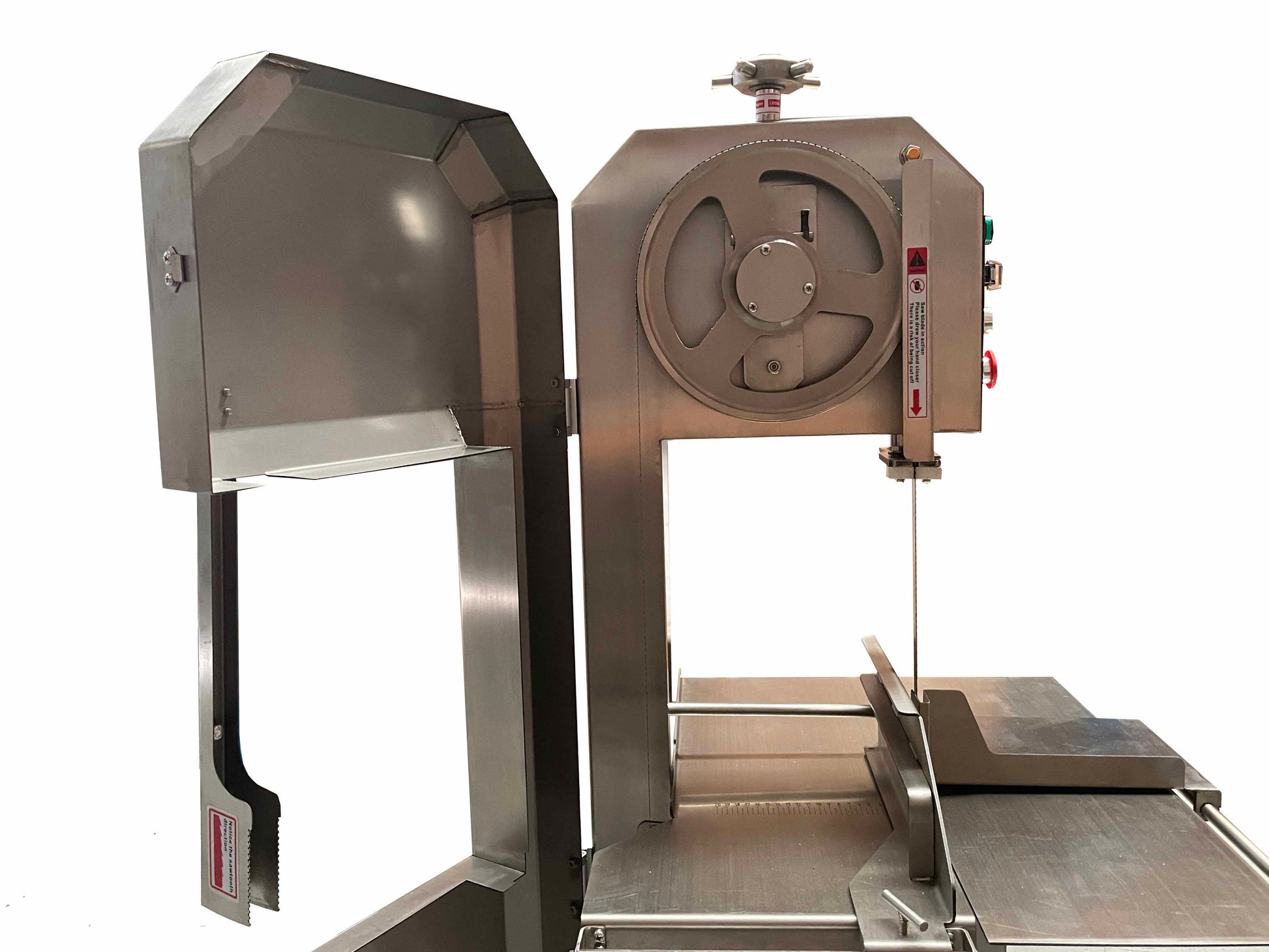

Safety switch on door

2 guides

2 blade scrapers

1 Pulley scraper

Bone Dust Collector

Blade Length: 2210mm

Throat: 250 X 320cm

Blade Length:2210mm (221cm)

Sliding table

Both sliding table & thickness guide swing away for extra table space

Table & door edges deburred

Table size; 68 X 50cm

Table height: 95cm

Cutting height: 32cm

Cutting width: 25cm

Dimensions of machine in crate: 81 X 76 X 185cm

Dimensions of machine: 65 X 75 X 175cm

Gross weight: 142Kg

Net weight: 122Kg

1 year warranty

Price inclusive of GST

Shipping/Handling time 2 business days

This machine requires a forklift to a business address. If no forklift is available or a delivery to a farm or residential address is required, a hydraulic tailgate can be arranged for an additional $75 or the machine can be delivered to a local freight depot for you to pick up.

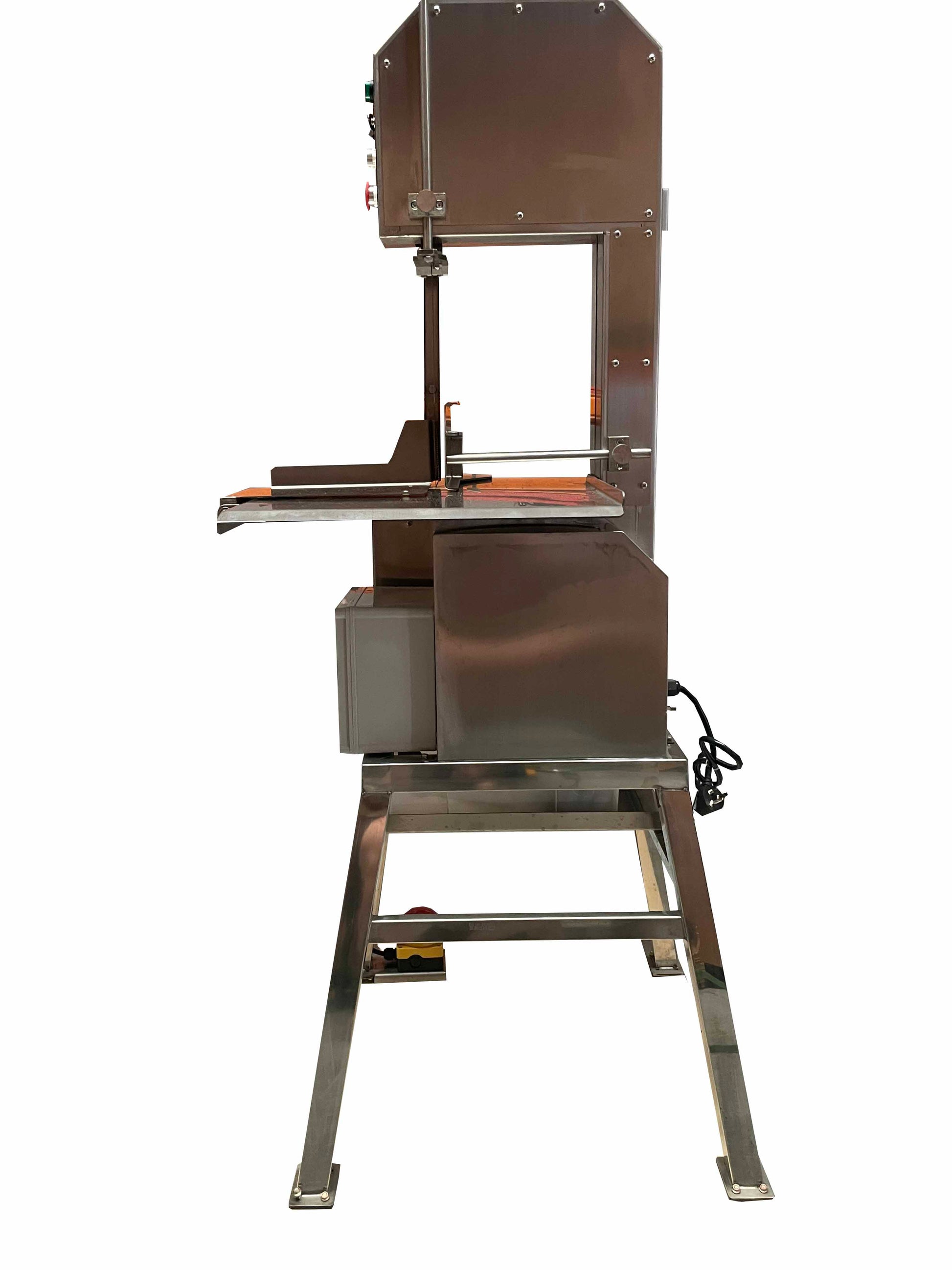

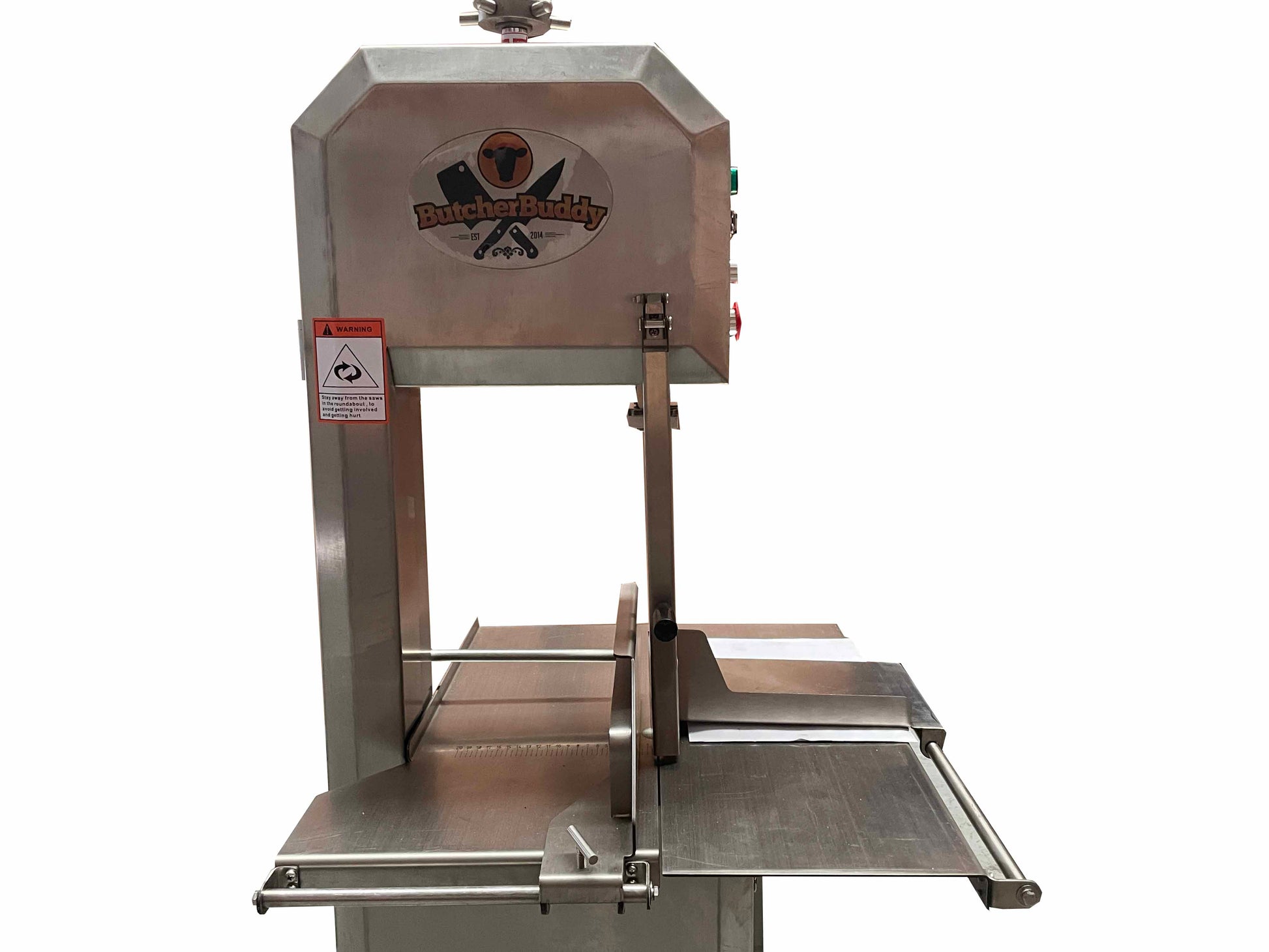

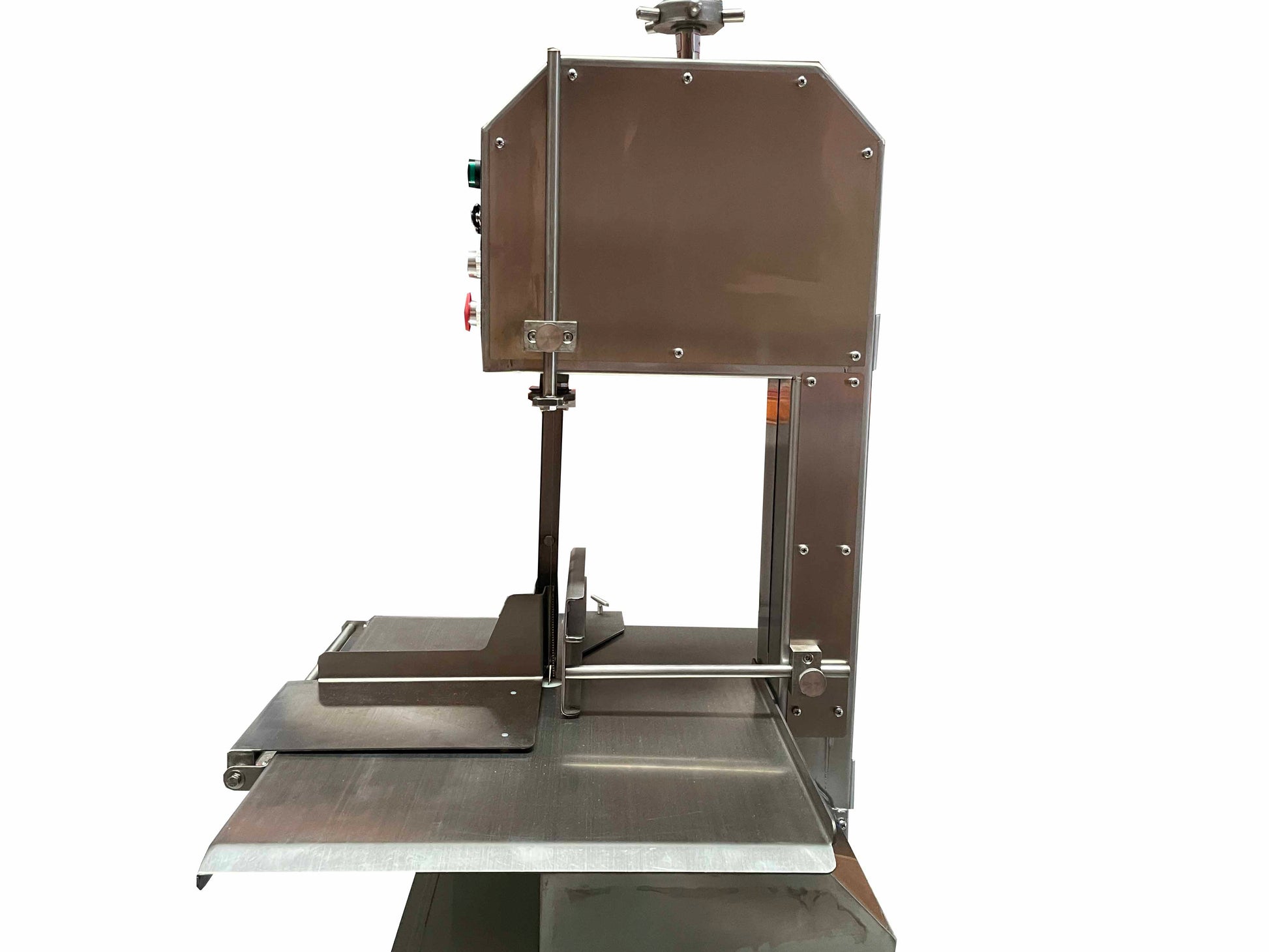

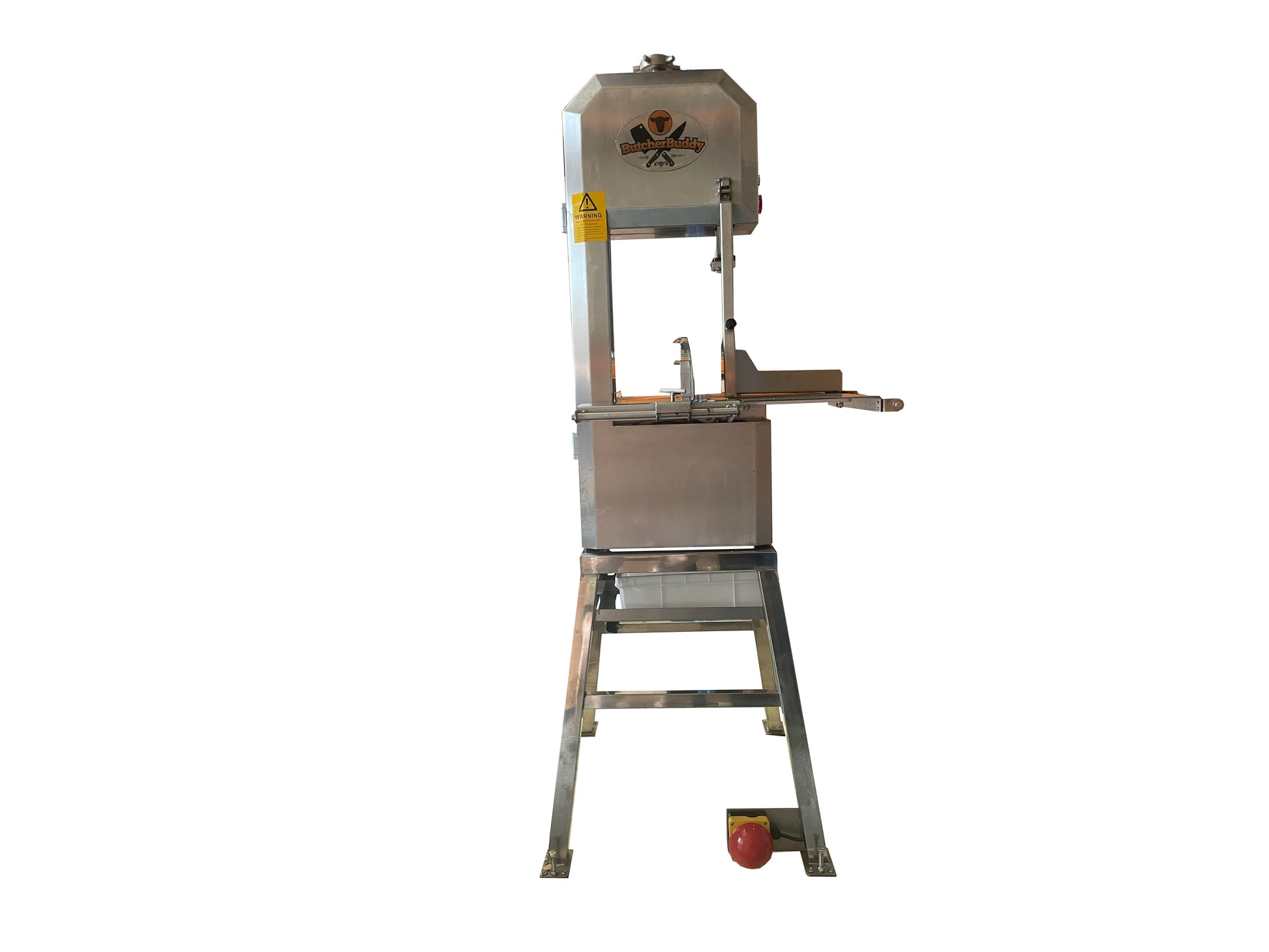

The BuddySaw Jnr is designed to cut meat and bone and used by mobile and home butchers, farmers, fish mongers etc
